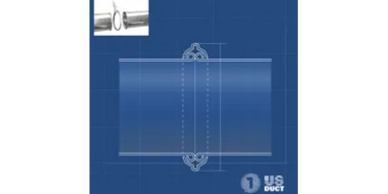

Rolled-Lip Clamp Together System utilizes a rolled edge that is formed on the end of all parts. The lips are joined together with a gasketed, over-center clamp. The clamp pulls the ends together and envelopes them inside the sealing gasket. This clamp-together system reduces installation time up to 70%. An adjustable sleeve and collar
found on the end of each fitting allows for infinite adjustments in the field. clamp together ductwork 3d shop drawings wood shop

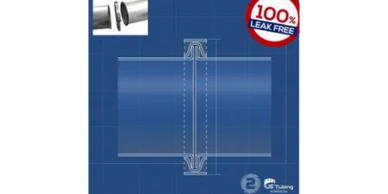

100% Leak-free / airtight Clamp-Connect System is a modular, laser welded, clamp-and-gasket joining system that is guaranteed to be leak-free. Each component terminates in a turned out lip on each end. A v-shaped gasket fits over one lip at each joint and then the connection is completed using an adjustable clamp. When the clamp is tightened, it compresses the gasket between the pipe edges to form an airtight seal. An adjustable sleeve pipe allows for infinite adjustments in the field. clamp together ductwork 3d shop drawings
Vanstone: This term refers to a technique where by a flange is used to mate 90° lips turned onto the pipe or duct component. In this method the flange is placed onto the pipe, the lip turned back and the flange is trapped behind it and can spin freely.

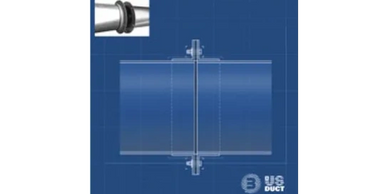

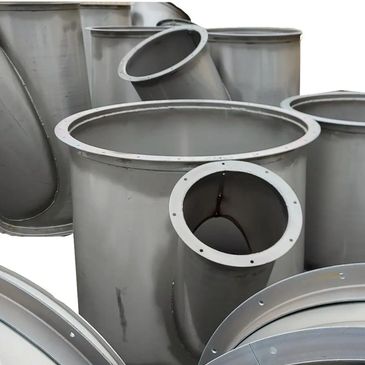

Welded: These flanges are welded to the duct and the faces of the flanges are the mating surface. Gaskets are often added between the flanges to create an even tighter seal. 3d shop drawings

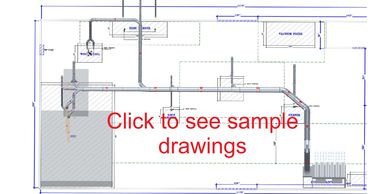

Our 3D drawings with a step by step Order of Install document ensures a very easy, quick and accurate installation with minimal to no wasted parts. Click drawing for 3D rotating view
To make a 3D drawing all we need is a scaled drawing with a reference distance.
Industrial Solutions has access to and offer a variety of indoor and outdoor dust collectors which ensures that you will get be best solution for your unique dust collection needs.
We can also install your system for you.
We offer a variety of materials and gauges including Galv, SS304. SS316, Aluminum, Black Iron, Painted, Powder Coated and Insulated duct in gauges like 20, 18, 16, 14, 12 & 10 plus 3/16" & 1/4"
Industrial Solutions was founded in 2018 but I have been providing top-quality dust collection equipment to businesses across the country for over 20 years. I pride myself on customer service and commitment to excellence.
I offer a wide range of industrial equipment, but specialize in dust collectors and ductwork. All of our products are manufactured by trusted brands and are backed by our quality guarantee.
I offer expert advice, personalized service, and ongoing support to ensure your complete satisfaction - I am the Dust Collection & Duct Work Expert and it is my personal goal to make sure you get the best solution based upon your unique needs.
